Orbsmart AW-16L

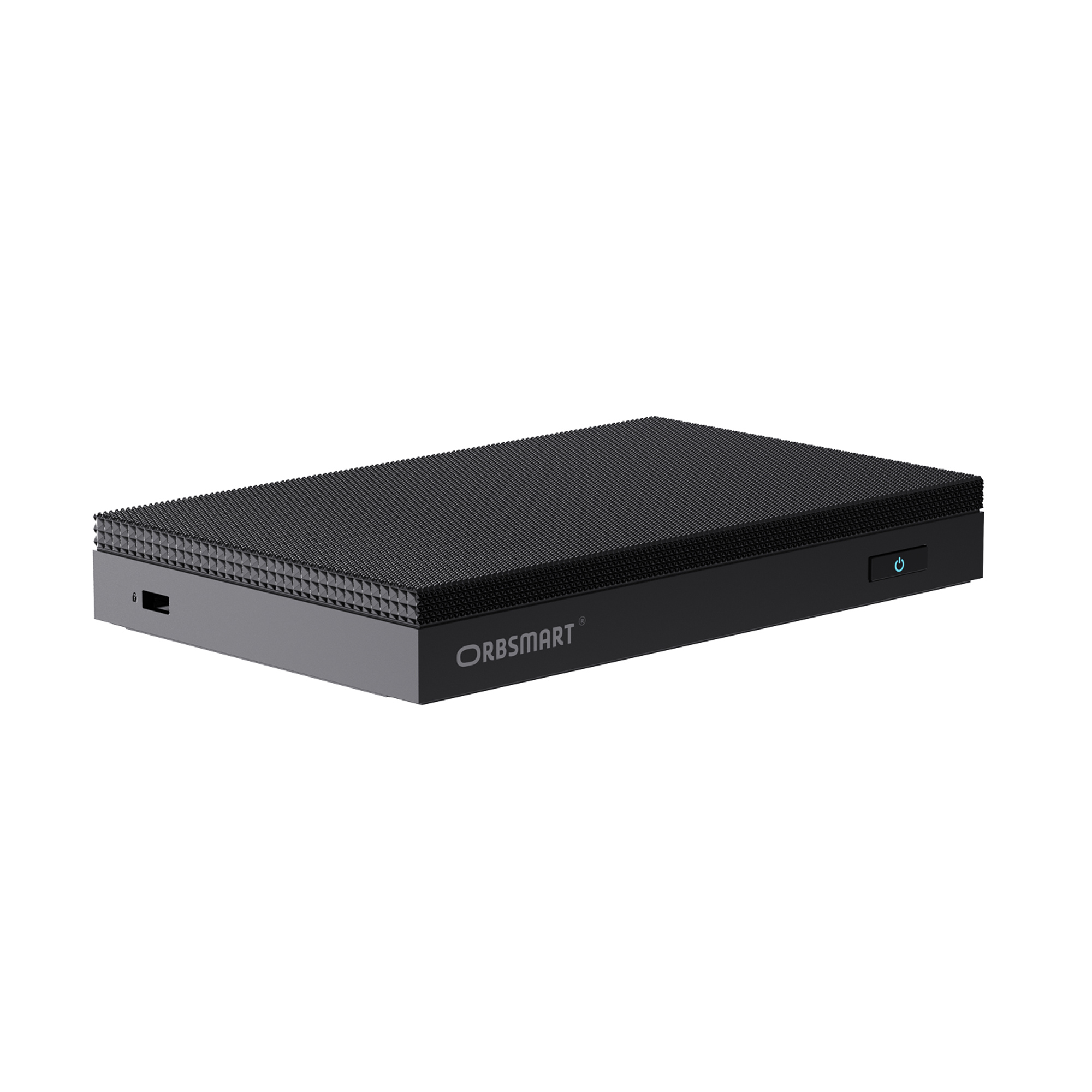

Orbsmart AW-16L Mini PC

The Orbsmart AW-16L is a fanless mini PC with pre-installed Windows 11 Pro. This ultra-compact system is ideal as a quiet office PC, versatile media center or powerful thin client and digital signage player.

Powered by the Intel “Twin Lake” Quad-Core N150 CPU (with 8GB/16GB RAM and 256GB/512GB storage), it delivers sufficient performance for computing-intensive programs and business applications. Thanks to its fanless design, the AW-16L is extremely reliable and low maintenance – perfect for any environment where a silent and efficient computer is required.

Order in the Orbsmart Shop
  • 100% silent & compact: Perfect as a quiet office PC, 4K media center or streaming box thanks to its fanless design
  • Efficient performance: Modern Intel N150 quad-core processor, optionally with 8/16GB RAM and 256GB/512GB storage
  • Windows 11 Pro & professional features: Ready to start immediately with pre-installed operating system. Supports Autostart, WOL, PXE & RTC
  • Triple 4K display support: Increase your productivity on up to three 4K monitors simultaneously via 2x HDMI and 1x USB-C
  • Fast connectivity: Equipped with the latest Wi-Fi 6 for lightning-fast Internet and Bluetooth 5.2 for stable accessories
  • Intel N150 “Twin Lake” Quadcore
  • Intel UHD Graphics
  • 8GB or 16GB LPDDR4X RAM memory
  • 256GB eMMC or 512GB SSD
  • Windows 11 PRO 64-bit (pre-installed)
  • WIFI 6 (2.4/5 GHz)
  • Bluetooth 5.2
  • 2x HDMI 2.0
  • 1x USB-C 3.2
  • 2x USB 3.2
  • 1x USB 2.0
  • 1x LAN RJ45 Gigabit
  • 1x 3.5mm audio (combo)
  • 1x micro-SD slot
  • 1x M2. NVMe SSD 2280 free (only 8GB variant)
  • Dimensions: 13.1 x 8.1 x 1.8 cm
  • Weight: 220g

Where to buy

Download

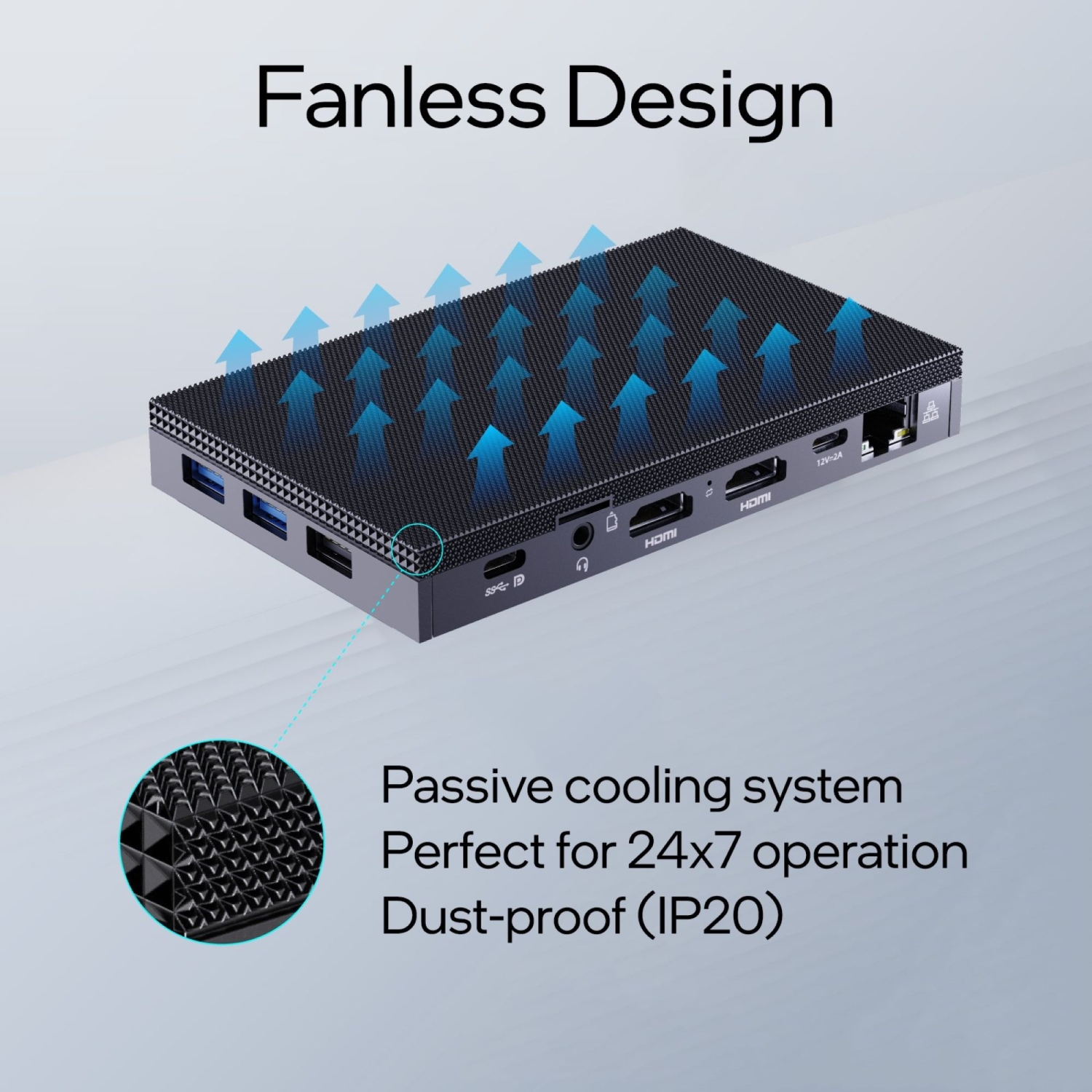

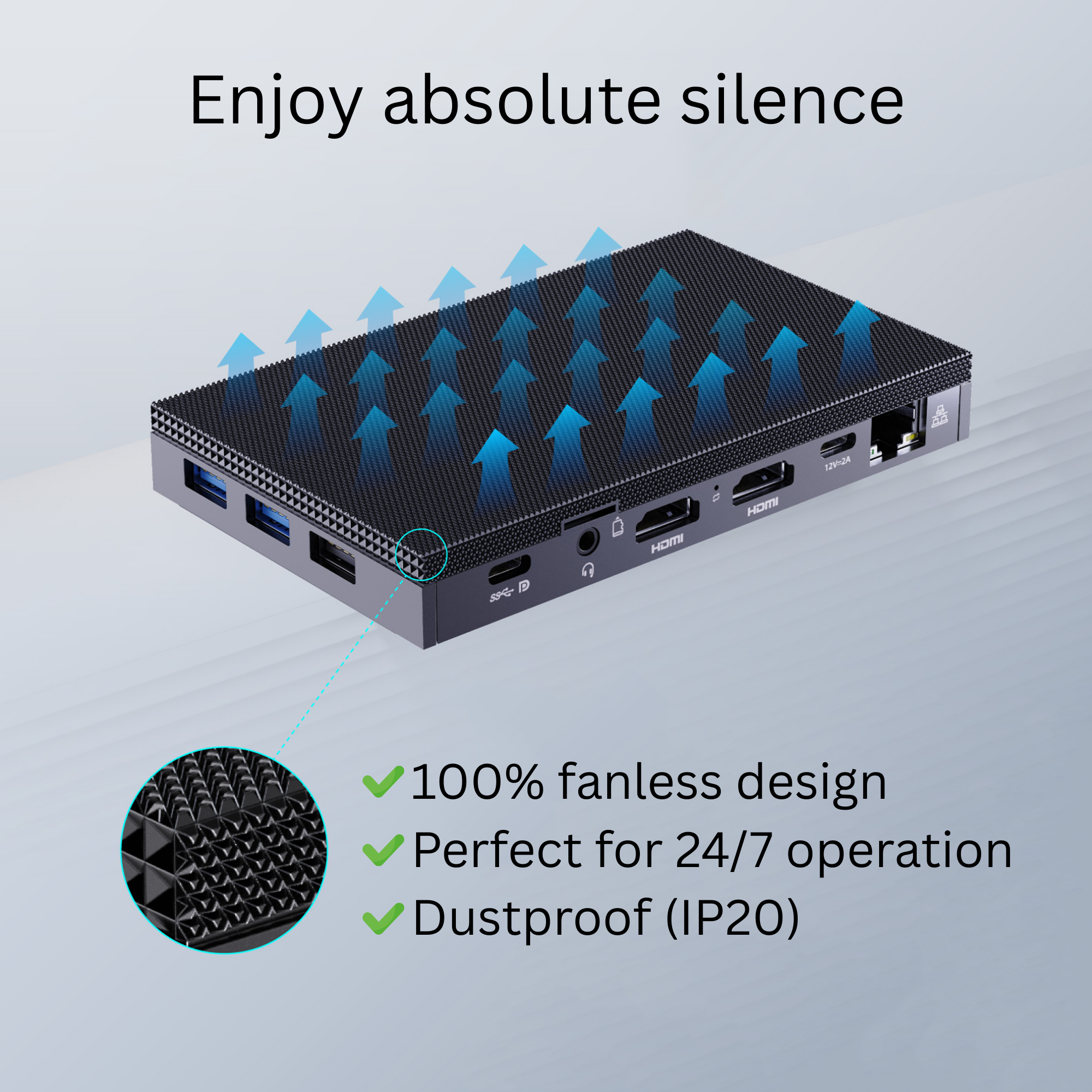

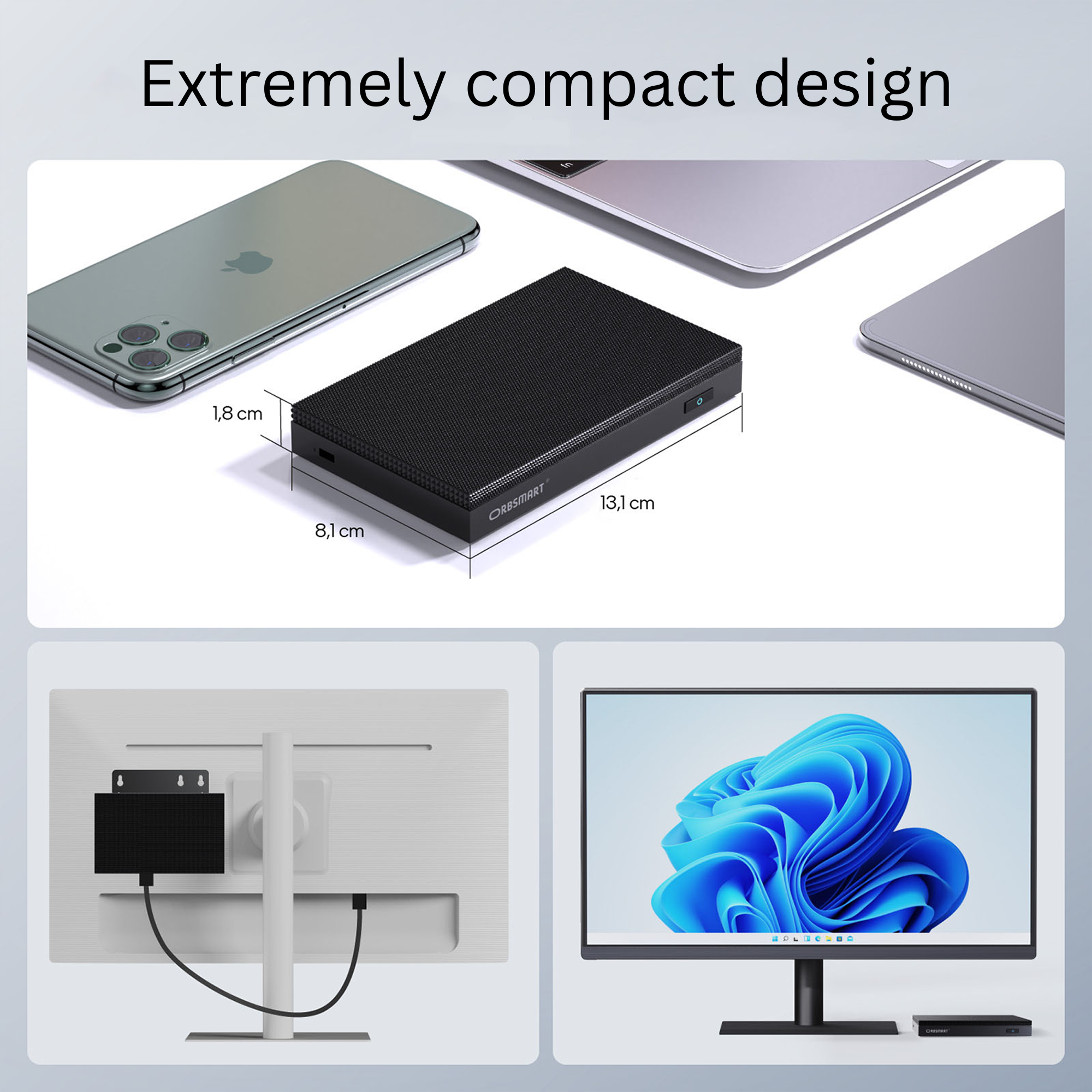

Fanless – extremely compact – energy efficient

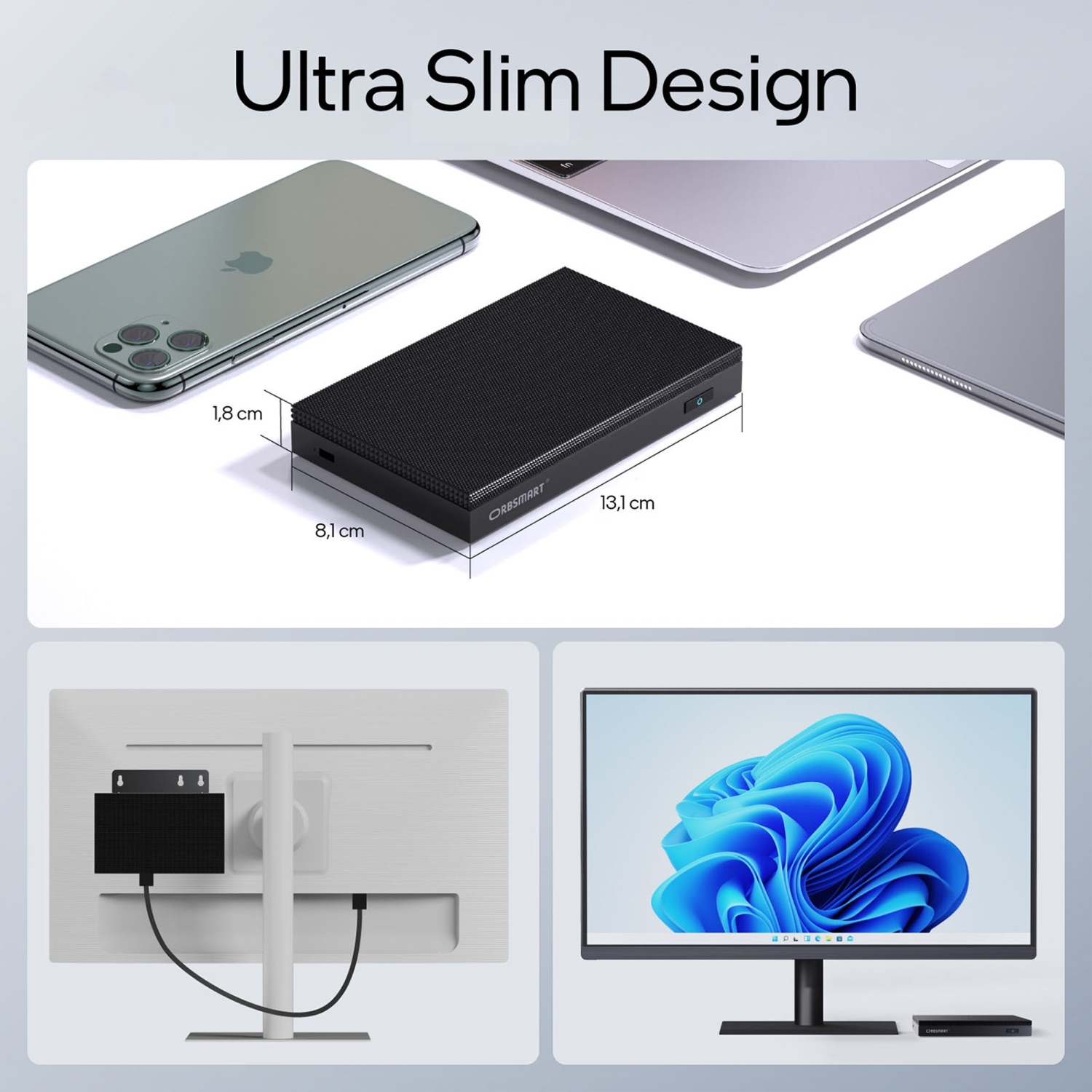

The Orbsmart AW-16L is an ultra-compact Windows 11 mini PC measuring just 13 x 8.1 x 1.8 cm, which fits easily into any bag. Its high-quality housing ensures absolutely silent operation thanks to passive and completely fanless cooling. This energy-efficient mini PC only consumes a few watts even under full load – ideal for anyone looking for a quiet and energy-saving computer.

Intel Inside

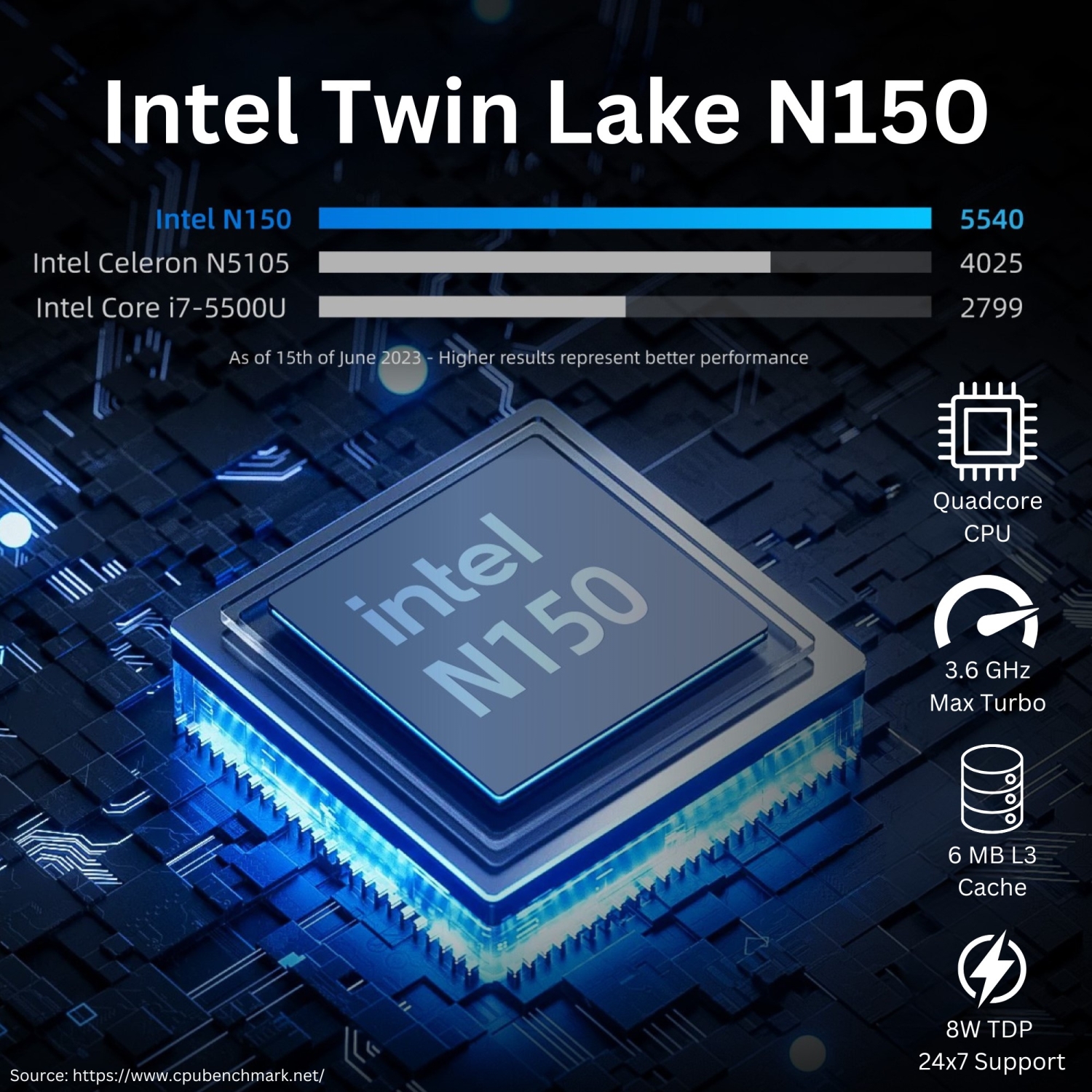

In the AW-16L, the latest Intel “Twin Lake” chip generation ensures top performance. The powerful Intel N150 quad-core processor (up to 3.60 GHz), together with a choice of 8GB RAM or 16GB RAM, provides more than enough performance reserves. This makes the AW-16L Mini-PC ideal for demanding office applications, smooth surfing and even small games. For fast system and program launches, you have a choice of 256GB internal memory or a lightning-fast 512GB SSD.

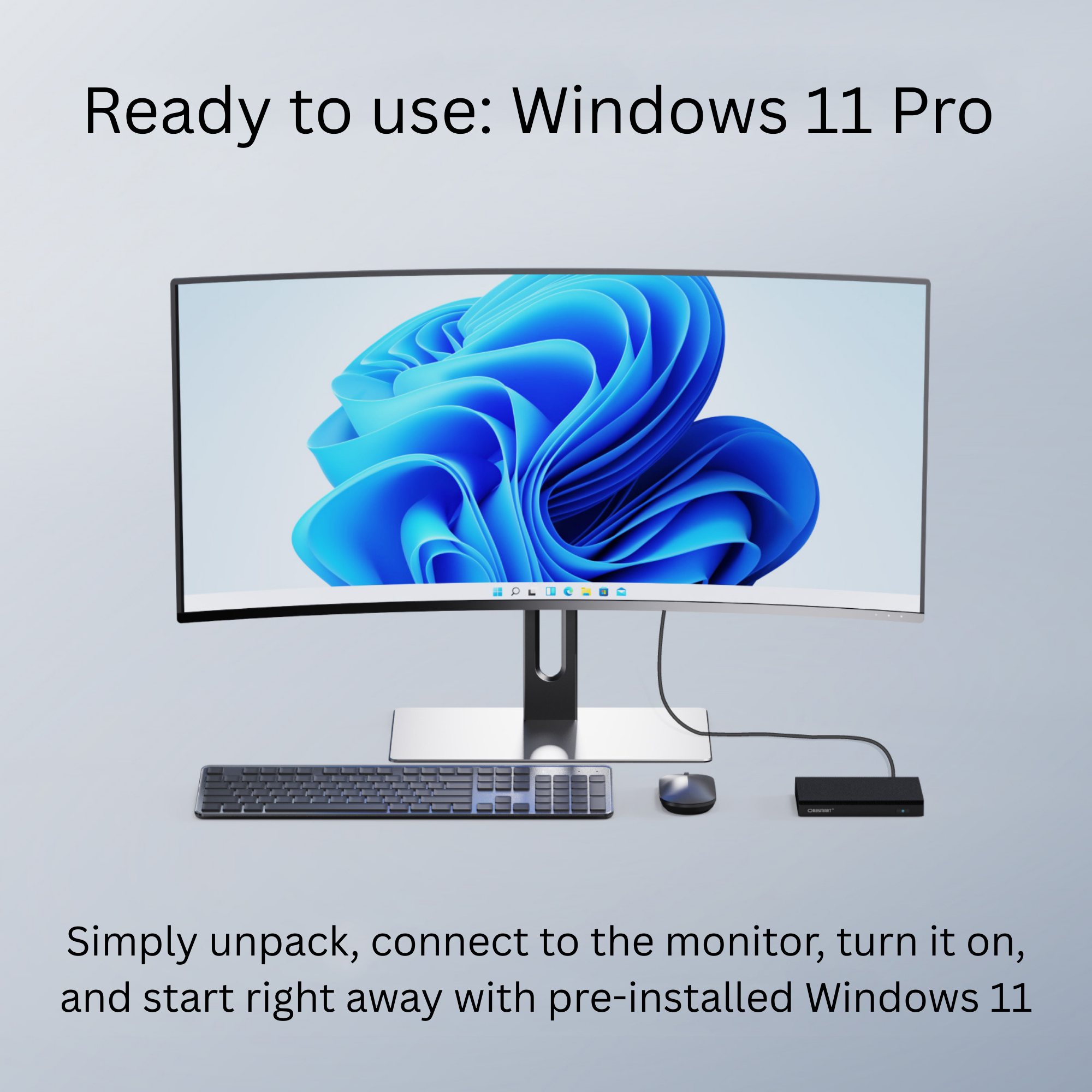

Windows™ 11 Pro

Your Orbsmart AW-16L is ready for immediate use: A fully-fledged Windows 11 Professional (64-bit) version is already pre-installed as the operating system. Turn any monitor or TV into a fully-fledged computer with this Windows mini PC. Easily install and use all programs supported by Windows 11, from Microsoft Office and Teams to VLC and TeamViewer. Ideal for a smooth PC experience right out of the box.

4K ULTRA HD

The AW-16L Windows computer is the perfect 4K mini PC for impressive picture experiences. Thanks to the integrated HDMI 2.0 and USB-C ports, it effortlessly supports resolutions up to 2160p at 60Hz. Enjoy videos and images in ultra-high resolution quality on any compatible monitor or TV. You don’t need an additional computer for 4K media playback – the AW-16L is the complete solution.

Triple Display

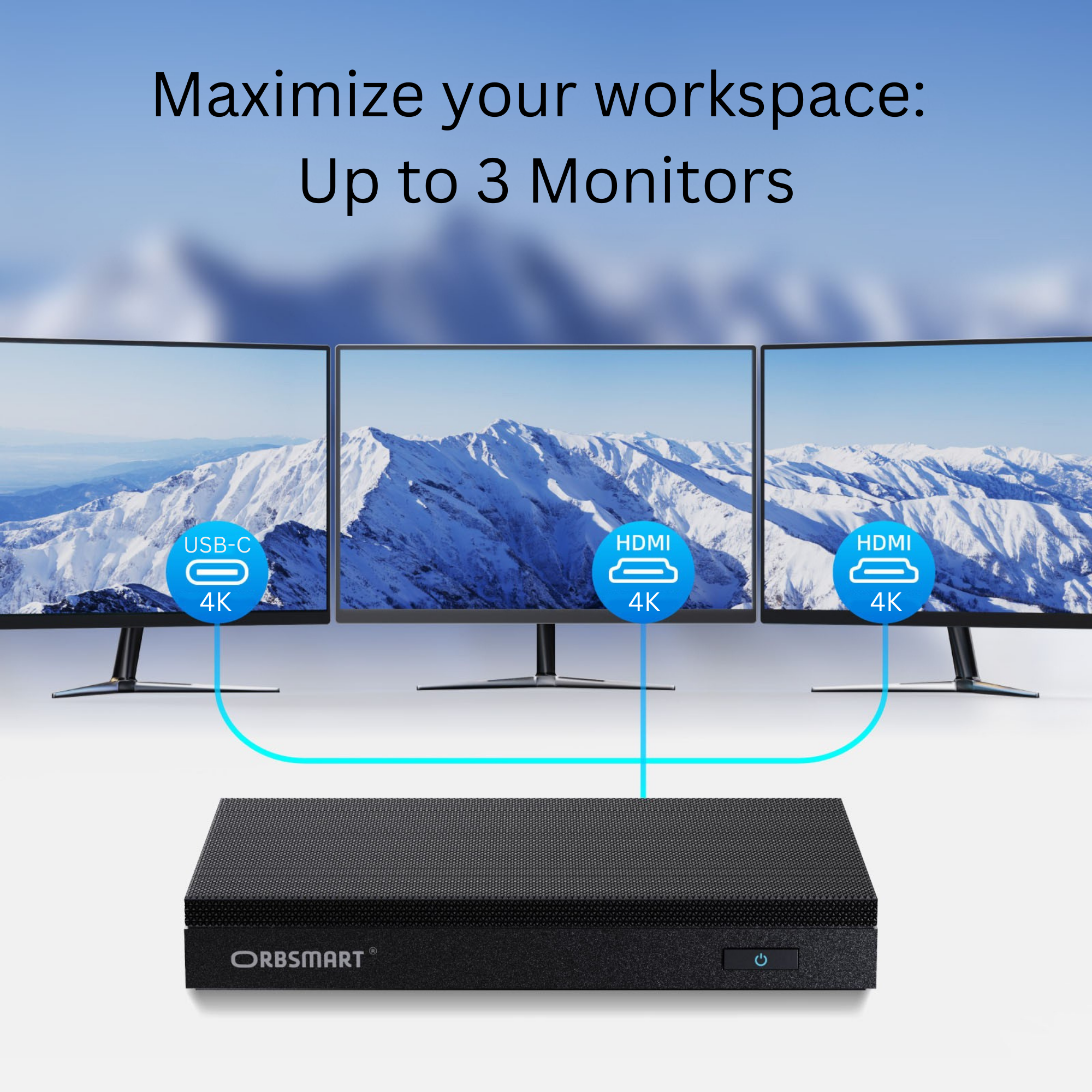

Despite its extremely compact design, the AW-16L Mini-PC is a real multi-display talent. It has two fully-fledged HDMI ports (an HDMI cable is included in the scope of delivery), and a third monitor can also be connected via the USB-C port. This allows you to use up to three 4K monitors simultaneously – ideal for maximum productivity in the office, extended multitasking or immersive multimedia experiences. Experience a versatile 4K triple display setup with this compact Windows computer.

Fully-fledged USB-C

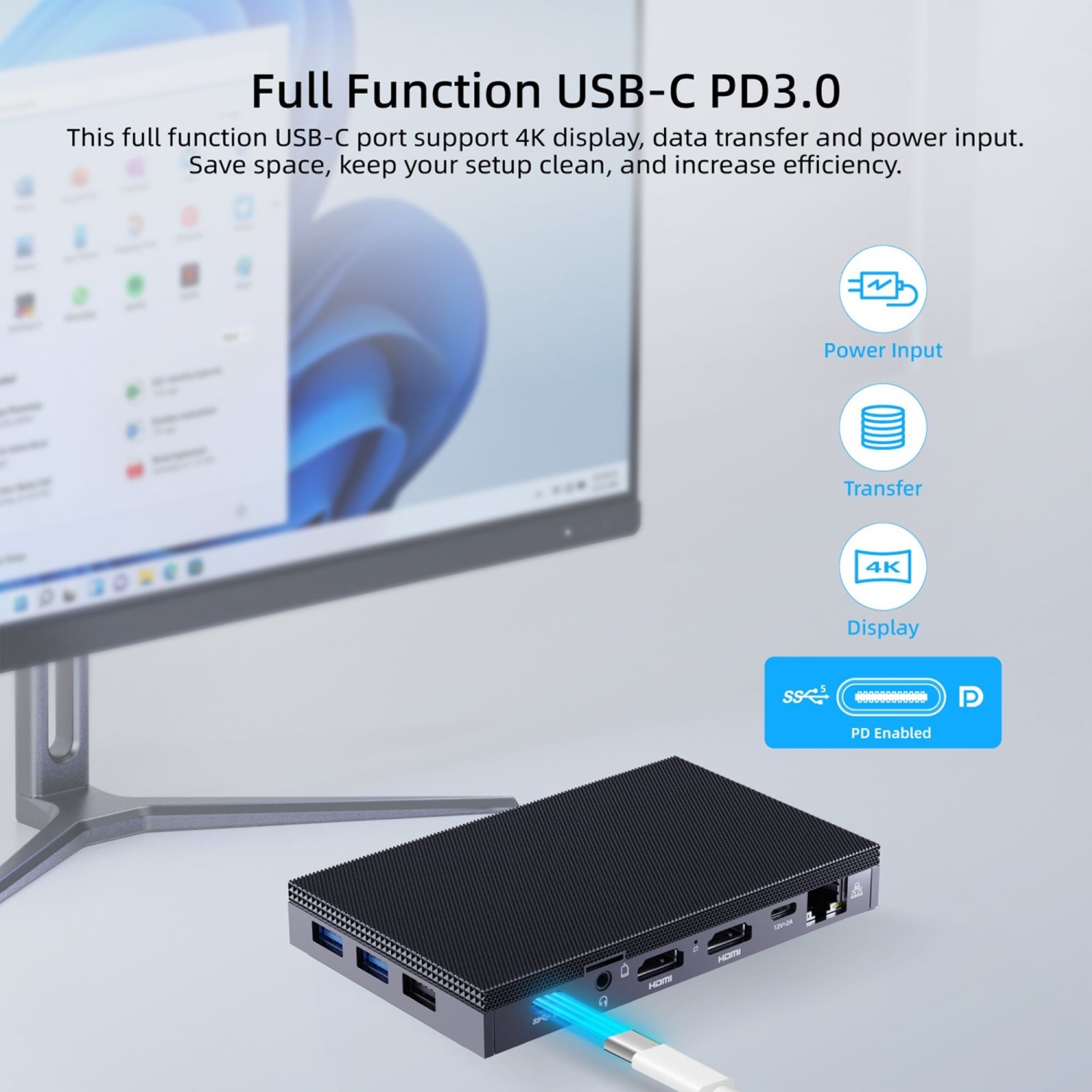

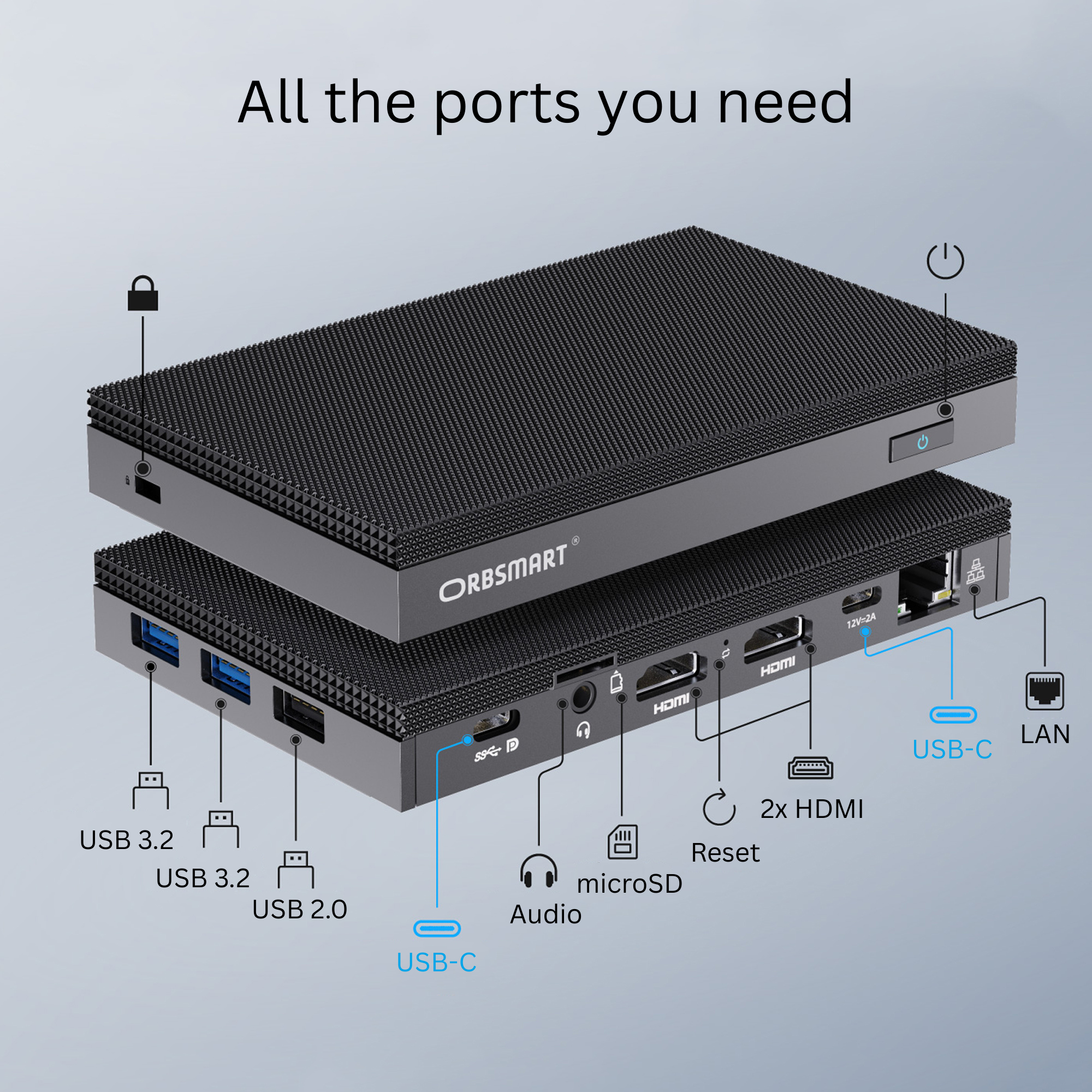

Another highlight of the AW-16L Mini-PC is the versatile integrated USB 3.2 Type-C port. This not only enables fast data transfer, but also the connection of a 4K monitor (up to 4K@60Hz) and bidirectional power supply (PD 3.0 / 12~18V) – all via a single cable! In addition, you have three full USB ports to easily connect all your peripherals. Whether mouse/keyboard (e.g. Orbsmart AM-2), Airmouse (e.g. Orbsmart WA-1), USB stick/hard disk or even an external DVD/BD drive – your Windows Mini-PC is ready for any task.

Flexibly expandable

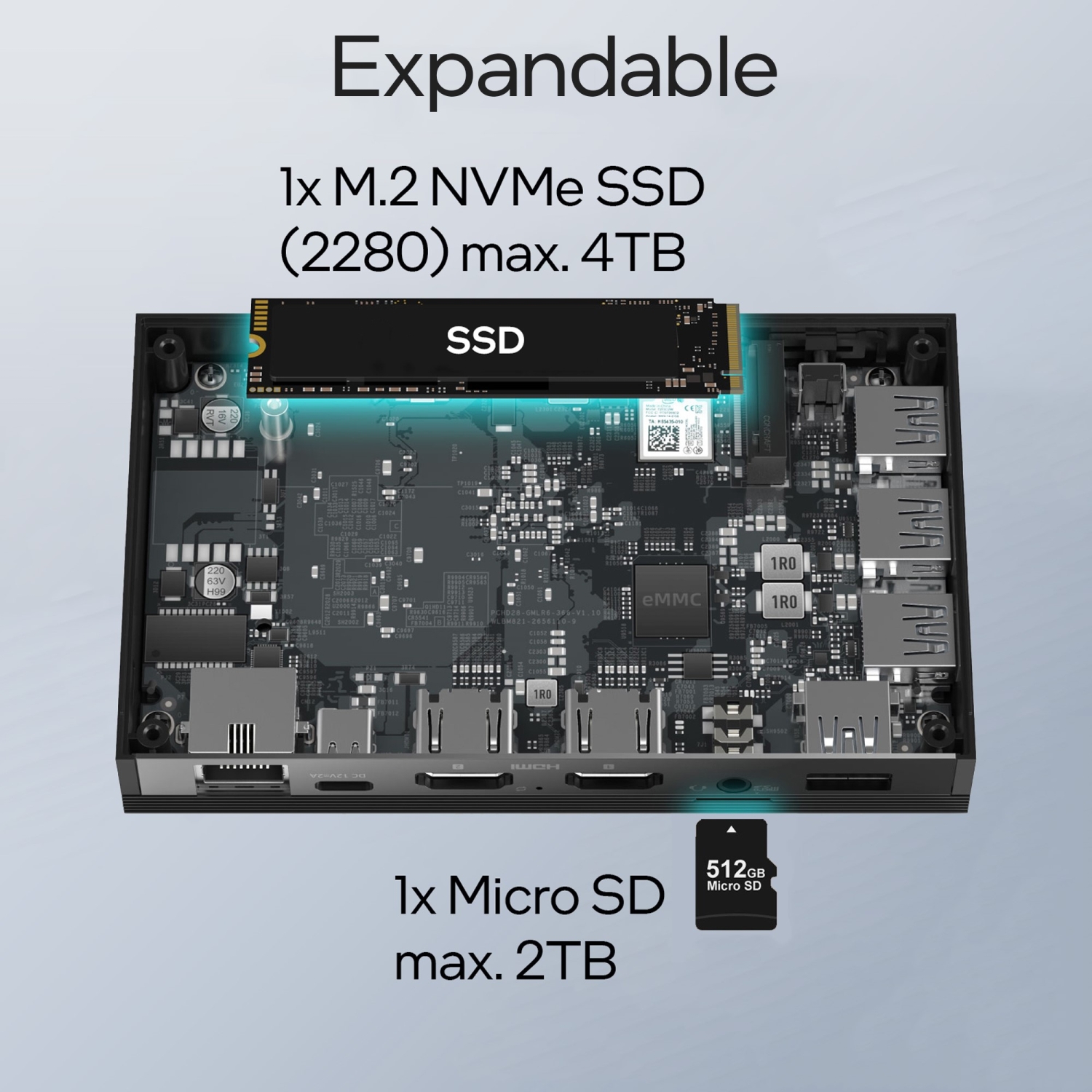

The AW-16L Mini-PC can be easily expanded for maximum storage capacity. The practical base plate allows you to quickly and easily install an M.2 NVMe SSD (type 2280) with up to 4TB (only available with the 8GB/256GB version). This allows you to expand the internal memory in a space-saving way without having to rely on external USB hard drives. In addition, the integrated microSD slot offers support for memory cards with up to 2TB – ideal for photos, videos or backups. Experience the flexibility of this Windows mini PC with a wide range of storage expansion options.

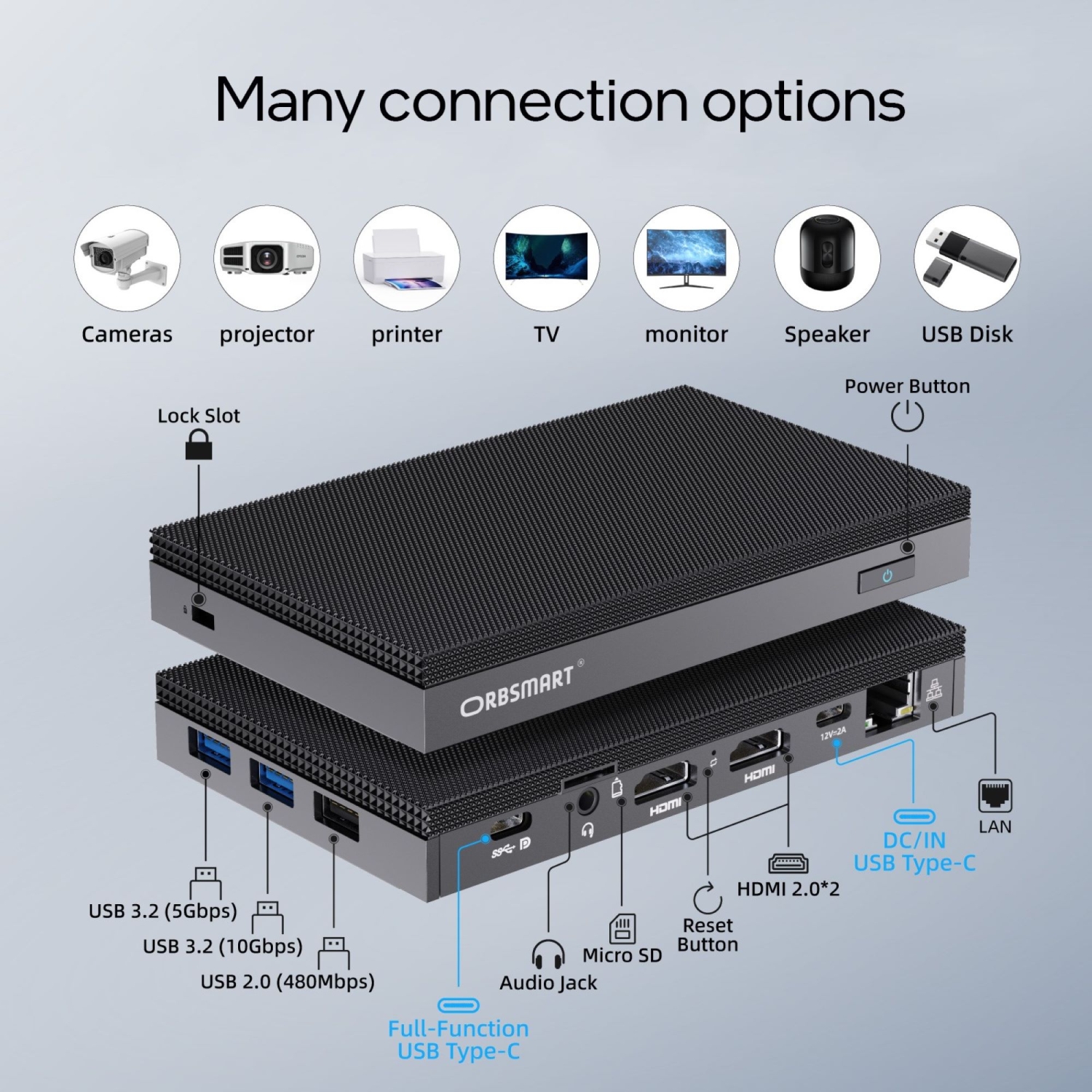

Connectivity

The Orbsmart AW-16L mini PC is ideally equipped for optimum connectivity. The integrated WIFI antenna with dual-band 2.4/5 GHz and the latest WIFI 6 standard guarantees long range and lightning-fast data rates – perfect for streaming and video conferencing. Wireless Bluetooth 5.2 technology also makes it easy to connect other devices such as mice/keyboards, headsets or smartphones. Alternatively, the Gigabit LAN connection provides a stable and secure network connection to your router or home network. So your Windows Mini PC is always optimally networked.

Monitor mount included

Get started right away with the AW-16L: This Windows mini PC comes with a complete accessory package that makes it extremely easy for you to get started. In addition to an HDMI cable and the EU power supply unit, you will also find a thermal pad (for SSD upgrades) and detailed instructions. The included monitor/screen mount is perfect for VESA mounting, allowing the compact PC to disappear invisibly behind the display. Experience how easy it can be to set up a powerful and space-saving PC – thanks to the well thought-out scope of delivery.

Benchmarks / comparison table

Orbsmart AW-16L (Intel N150 - Passmark Average CPU: 6604)
Orbsmart AW-15L (Intel N100 - Passmark Average CPU: 5578)
Orbsmart AW-15 (Intel N100 - Passmark Average CPU: 5578)
Product

Orbsmart AW-15

Orbsmart AW-15L

Orbsmart AW-16L

Operating systemWindows 11 ProfessionalWindows 11 ProfessionalWindows 11 Professional
Processor / GPU Quadcore Intel Celeron “Alder Lake-N” N100 (@0.80 GHz / Burst freq: 3.40 GHz) / Intel UHD Graphics XEQuadcore Intel Celeron “Alder Lake-N” N100 (@0.80 GHz / Burst freq: 3.40 GHz) / Intel UHD Graphics XEQuadcore Intel Celeron “Alder Lake-N” N150 (@1.80 GHz / Burst freq: 3.60 GHz) / Intel UHD Graphics XE
Working memory / Int. Memory 16GB DDR4-RAM + 256GB SSD8GB or 16GB DDR4 RAM / 256 eMMC or 512GB SSD8GB or 16GB DDR4 RAM / 256 eMMC or 512GB SSD
Connections1x HDMI 2.0, 1x VGA, 1x DP 1.2, 1x 2.5 Gigabit LAN, 1x USB 3.1 (Gen1) + 1x USB 3.1 Type-C (Gen1), 2x USB 2.0, 1x 3.5mm audio, microSD slot2x HDMI 2.0, 2x USB 3.2 Gen 2, 1x USB 2.0, 1x USB-C 3.2 (PD 3.0 Support / Data + Power / DP 1.4), 1x 3.5mm Audio2x HDMI 2.0, 2x USB 3.2 Gen 2, 1x USB 2.0, 1x USB-C 3.2 (PD 3.0 Support / Data + Power / DP 1.4), 1x 3.5mm Audio
WIFI / Bluetooth 802.11b/g/n/ac/ax (2.4/5GHz) / Bluetooth 5.2802.11b/g/n/ac/ax (2.4/5GHz) / Bluetooth 5.2802.11b/g/n/ac/ax (2.4/5GHz) / Bluetooth 5.2
